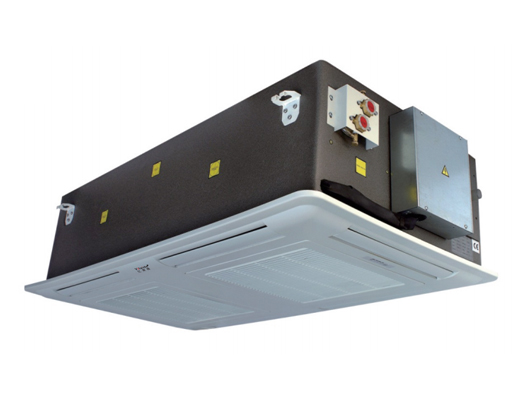

Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation.

Panel Assembly
Aesthetic panel design, in ABS material with synthetic washable and removal air filter, auto-swing.

Quite running
DIDW centrifugal fans with 3 speed motor

High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure. with 3/4”pipe connections and air bleed vent.

Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a condensates draining pump and a safety float.

Drain pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor.

Fresh air intake
Pre-stamped hole for fresh air connection
